COMBI RAILS FOR VW CRAFTER & MERC.SPRINTER
DOWNLOAD INSTALLATION GUIDE
|
| N/S = NEARSIDE (RHD), O/S = OFFSIDE (RHD) |
| MWB = 2.95M RAIL, LWB = 3.80M RAIL, XLWB=4.35M RAIL |

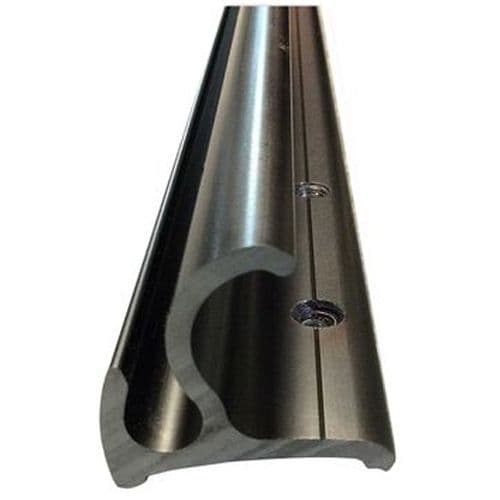

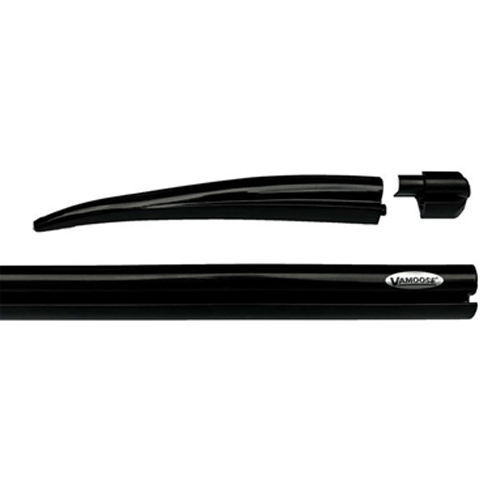

| THIS COMBI RAIL IS A COMBINATION GUTTER AND AWNING RAIL. IT COMES WITH FRONT AND REAR END CAPS INCLUDED AS PART OF THE KIT. |
| THE BAR IS PRODUCED FROM T4 MALLEABLE ALUMINIUM SO HAS GREATER FLEXIBILITY, MAKING IT EASIER TO MOULD TO THE VEHICLE'S PROFILE. |
| FULL FITTING INSTRUCTIONS, SCREWS AND 3M ADHESIVE TACK (FOR EASE OF POSITIONING) ARE ALSO SUPPLIED AS STANDARD |
| ORDER PART NO. DV100 FOR AWNING BRACKET TO FIT COMBI RAIL & ALSO DV100A IF FITTING AWNING LONGER THAN 3.0M |

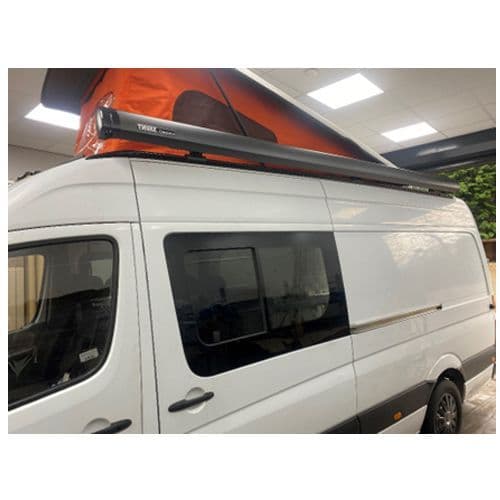

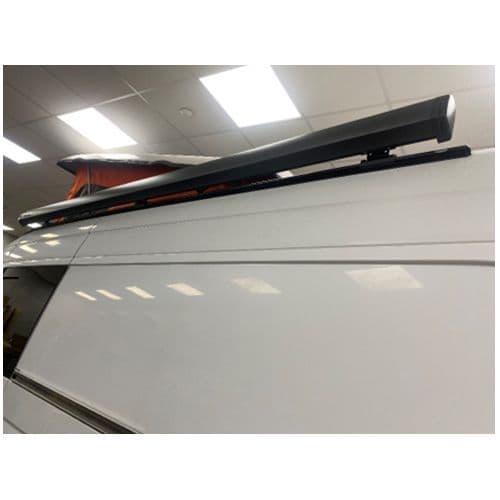

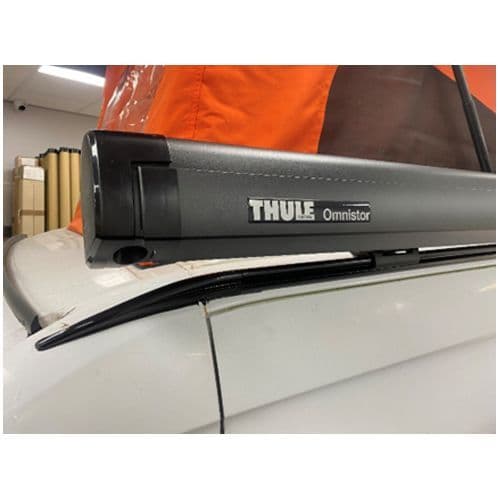

| ADDITIONAL IMAGES SHOW A THULE 5200 AWNING FITTED TO A LWB VW CRAFTER WITH ELEVATING ROOF, ON A DV114 RAIL USING BOTH DV100 & DV101 ADAPTER KITS |
