| With the 80 Watt solar power kit you could expect to generate around 22 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc. |
|

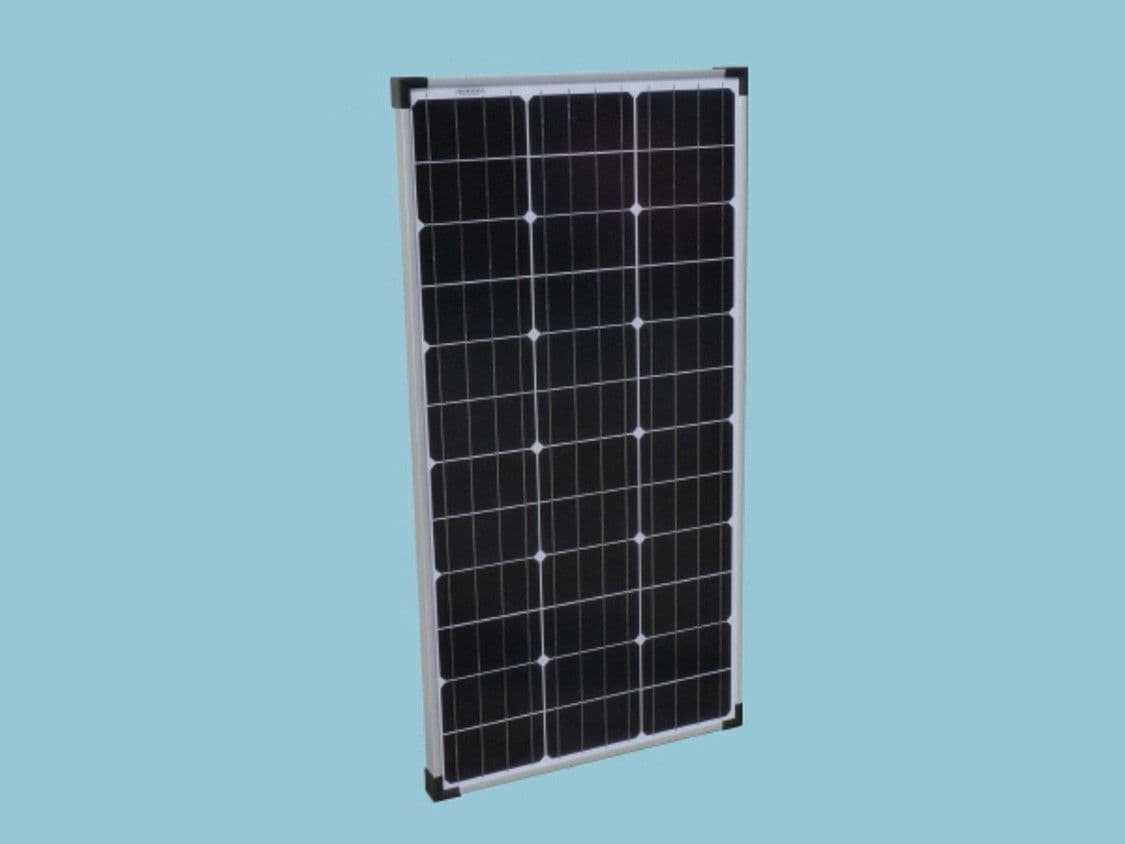

| Solar Panel Specifications |
| High Efficiency Monocrystalline Cells |
| Maximum Power (Pmax): 80W |
| Maximum Power Current (Ipm): 4.44A |
| Maximum Power Voltage (Vpm): 18V |
| Short Circuit Current (Isc): 4.49A |
| Open Circuit Voltage (Voc): 22.32V |
| Norminal Operating Cell Temp. (NOCT): -45 to 80??C |
| Maximum System Voltage: DC1000V |
| Size: 1000x510x35mm |
| Weight: 6.6kg |
|
| Kit Features |
| 1 x Solar Panel 80W 12V |
| 2 x 6m Single Core Cable 4mm |
| 1 x Waterproof Cable Entry Cover |
| 4 x ABS Moulded Corner Brackets |
| MC4 Connectors |
| *** CHARGE CONTROLLER SOLD SEPARATELY *** |
