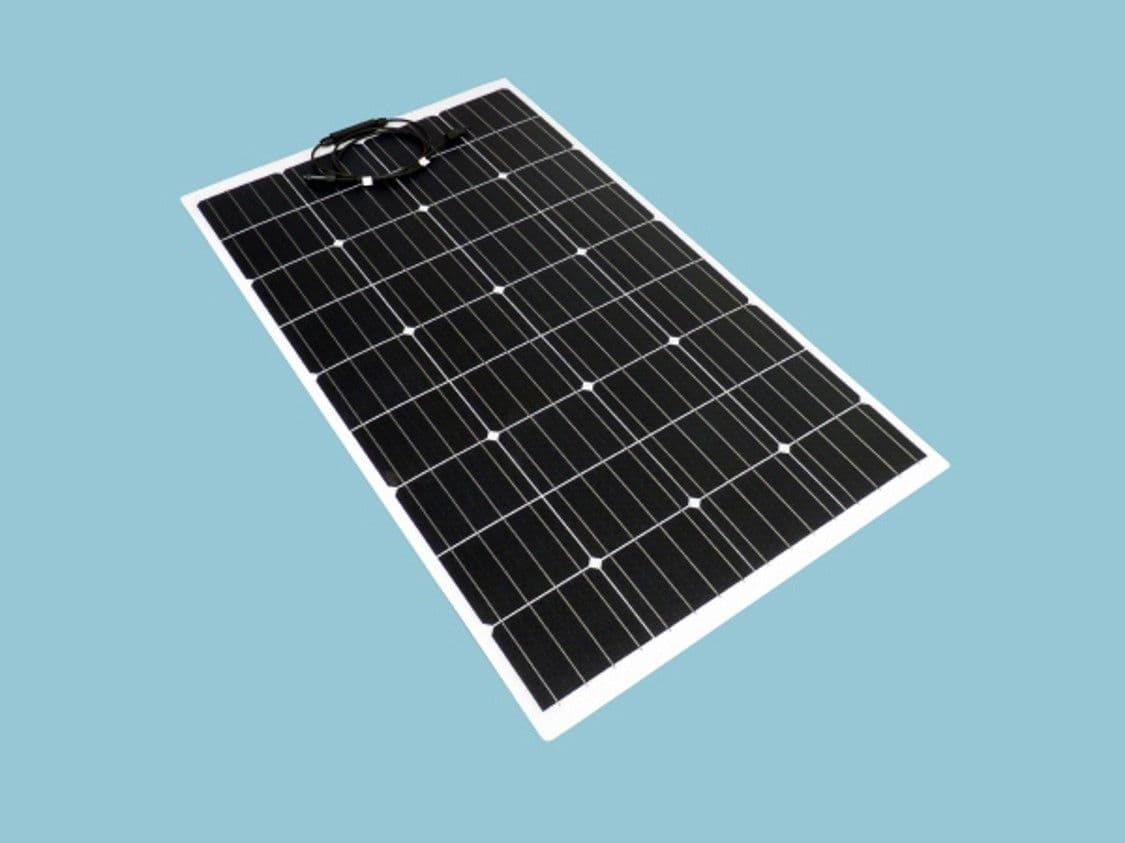

| With a Curve 120W 12V solar panel you could expect to generate around 34 amps per day. |
| Multiple panels can be connected to acquire higher power if needed. |
|
| SPECS |
| Maximum Power (Pmax): 120W |
| Maximum Power Current (Ipm): 6.7A |
| Maximum Power Voltage (Vpm): 18V |
| Short Circuit Current (Isc): 7.2A |
| Open Circuit Voltage (Voc): 21.6V |
| Norminal Operating Cell Temp. (NOCT): -45 to 80??C |
| Maximum System Voltage: DC600V |
| Maximum Series Fuse: 9A |
| Size: 1030 x 665 x 4mm |
| Weight: 3.65kg |
|
| FEATURES |
| 3?? flexibility or 3cm per 1m of panel length |
| ETFE rough scratch resistant surface which can be walked on in deck shoes. |
| Highly efficient monocrystalline cells |
| Can be conveniently placed on curved solid surfaces |
| Can be easily bonded using fixing adhesive (no need for drilling) |
| 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm) |
|
| IN THE KIT |
| 1 x Solar Panel 120W 12V Monocrystalline |
| 2 x 6m 4mm Single Core Cable |
| 1 x Waterproof Cable Entry Cover |
| MCA Connectors |
| *** CHARGE CONTROLLER SOLD SEPARATELY *** |
